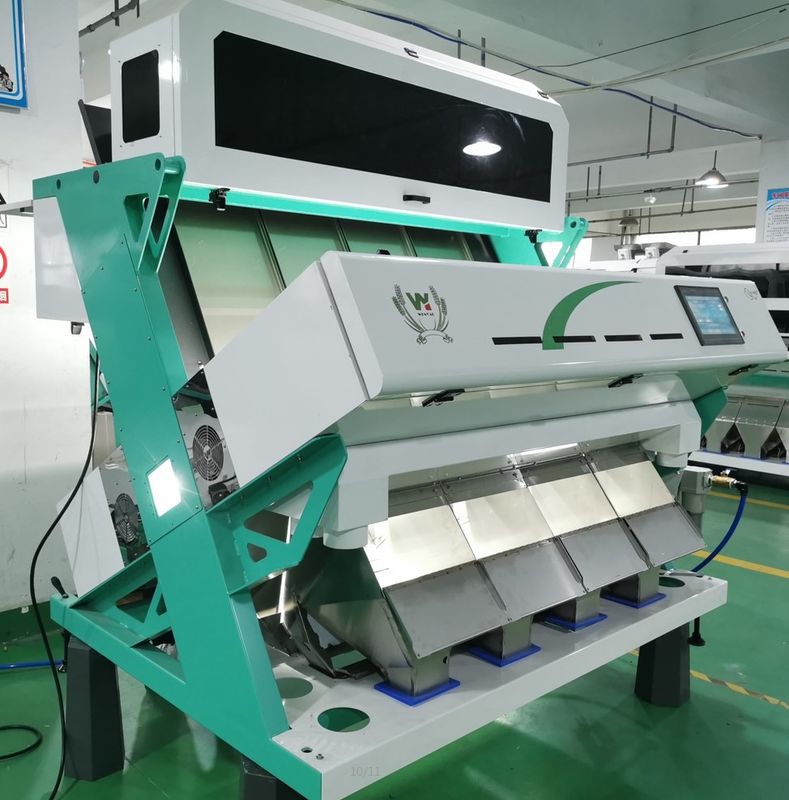

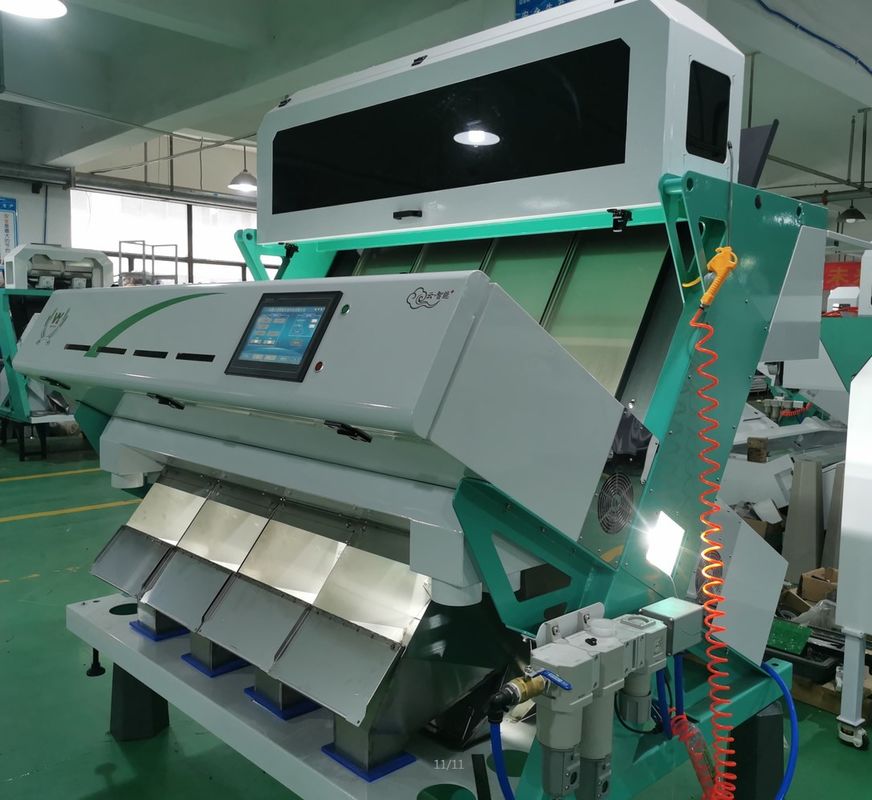

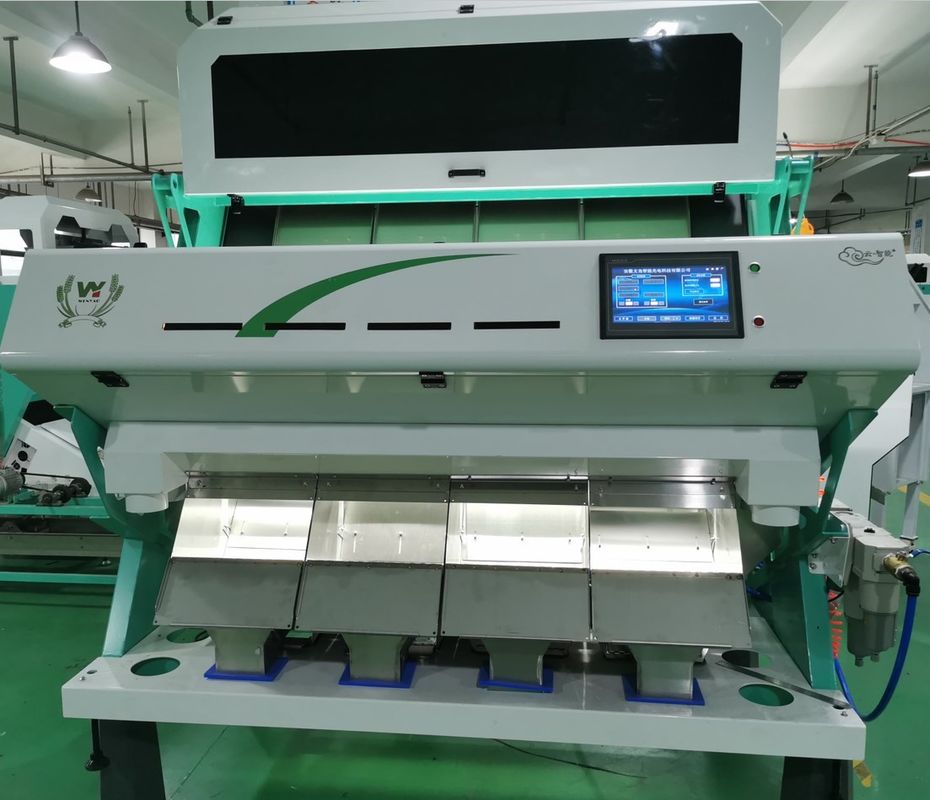

Multi Function Coriander Seed Color Sorter Machine Seed Colour Sorter
At Wenyao Color Sorter, we pride ourselves on being a leading manufacturer, supplier, and exporter of advanced color sorting machinery in China. Our Coriander Seed Color Sorter Machine is a testament to our commitment to innovation and excellence in the field of agricultural sorting technology.
High-Resolution Cameras: Our Coriander Seed Color Sorter Machine is equipped with state-of-the-art cameras that capture detailed images of each seed. This high-resolution imaging enables the machine to detect even the slightest imperfections, ensuring that only the best seeds are processed.
Powerful Software: The sorting process is controlled by sophisticated software that analyzes the images captured by the cameras. The software is designed to identify and reject seeds based on color, size, and shape, ensuring a thorough and accurate sorting process.
User-Friendly Interface: The Coriander Seed Color Sorter Machine features an intuitive interface that makes it easy for operators to set and adjust sorting parameters. This user-friendly design enhances operational efficiency and minimizes the learning curve for new users.
Robust Build Quality: Built to withstand the demands of continuous operation, our Coriander Seed Color Sorter Machine is constructed from high-quality materials that ensure durability and longevity. This robust build quality translates to lower maintenance costs and a longer operational life.
Investing in our Coriander Seed Color Sorter Machine offers several benefits for your operations:
Enhanced Quality Control: By removing defective seeds and contaminants, our machine ensures that only the highest quality coriander seeds reach the market. This enhanced quality control helps you build a reputation for excellence in your products.
Increased Efficiency: The Coriander Seed Color Sorter Machine streamlines the sorting process, significantly reducing the time and labor required for manual sorting. This increased efficiency allows you to focus on other critical aspects of your operations.
Cost Savings: By reducing waste and improving the accuracy of sorting, our machine helps you optimize your resources and reduce costs associated with reprocessing and handling.
Scalability: Our Coriander Seed Color Sorter Machine is designed to accommodate various production scales, making it suitable for both small and large operations. Whether you are a small business or a large enterprise, our machine can be tailored to meet your specific needs.
Technical Parameters:
| MODEL | WYCS4-256 |
| Chutes/Channels | 4/256 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.3kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.4M3/Min |
| Weight | 750kg |
| Diamension(L*W*H) | 1855*1540*1852mm |
Color sorter Principle as below:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
Maintenance and inspection
1Monthly: check the filter element and the cleanliness of the ash removing brush.
2Quarterly: check the fluorescent lamp.
3Half a year; check or replace lubrication oil for the compressor at least one time.
Warning: in order to prevent static electricity and ensure the personal safety, the host machine and its attached equipment shall be in good ground connection. Electric cabinet opened by professional only. It is forbidden to open the rear case cover of the cabinet in operation as it is a fully enclosed automatic cycle air cooling system.
Frequently Asked Questions:
1. How will we get Quotations for Color Sorter?
Color Sorter separates materials by optoelectronic technology according to color difference.
Please indicate Input Materials name, and Production Throughput. It will be better if you could provide materials photos, and mark accepted colors and rejected colors.
2. How do we do Samples Test?
Welcome customers provide test materials or visit us, then we provide test report together with test video in time. If you could not send it, Please provide photos like these, Original Materials, Accepted Materials and Rejected Materials. Then we use stored materials for test, and advise you with test data.
3. What is your After-sale service?
We provides detailed technical assistance on how to install, After the machinery is installed, our service engineer comes to customer workshop, debugging well on-cite, and training customers staff free-charge.
4. Hong long is Warranty time?
We provide Two years warranty of whole machine.
5. Could you supply Accessories of Color Sorter?
Yes, also supply these spare devices like Air compressor, Air tank, Platform, Air filter, Elevator, UPS, Regulated Power supply. Quotation will be separate.
6. How many models do you have?
We supply Various Models to meet the needs of different production, from household to large scale production, We also accepts orders of customized models.
7. We are interested in your machine, How we have a meeting face by face?
our staff visit oversea clients regularly, Please make an appointment in advance with us. In additional, if you visit our office and workshop, please take your materials sample together and let us test it in our workshop.
8. What materials can be sorted
Rice, cereal, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. If you want to sort other materials, please contact our customer service.
