원래 장소:
중국
브랜드 이름:
WENYAO
인증:
CE & ISO9001
모델 번호:
WYB2 미니
연락주세요

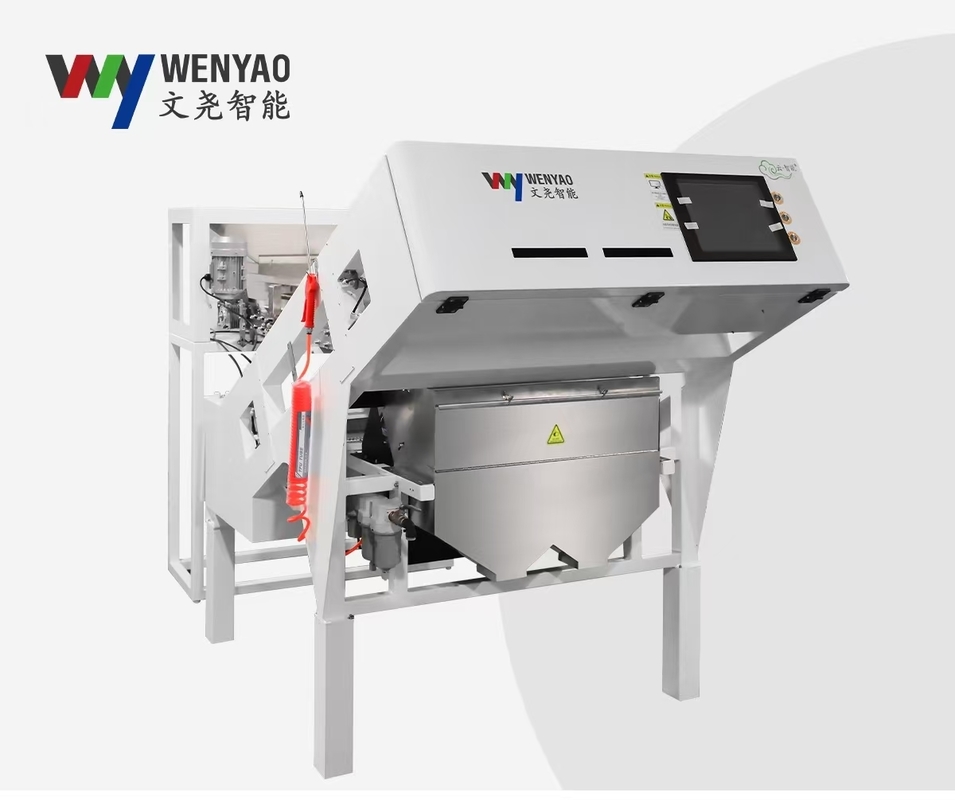

Wenyao Intelligent Optical Coffee Cherry Color Sorter Cocoa Beans Sorting Machine Coffee Bean Color Sorter
| MODEL | WYB2 MINI |
| Chutes(channels) | 2(128) |
| Sorting accuracy(%) | ≥99.9 |
| Output(KG/h) | 300-500 |
| Monophase Voltage | 180-240V/50Hz/60Hz |
| Power supply(kw) | 1.4 |
| Work Air Pressure(Mpa) | 0.2-0.4 |
| Air consumption(L/min) | 2000-4000 |
| Air supply(Mpa) | 0.6--1.0 |
| Dimension(L*W*H) mm | 2300*1350*1600 |
| Weight(kgs) | 600 |
| Package | Plywood case |
| Package Size mm | 2320*1370*1620 |

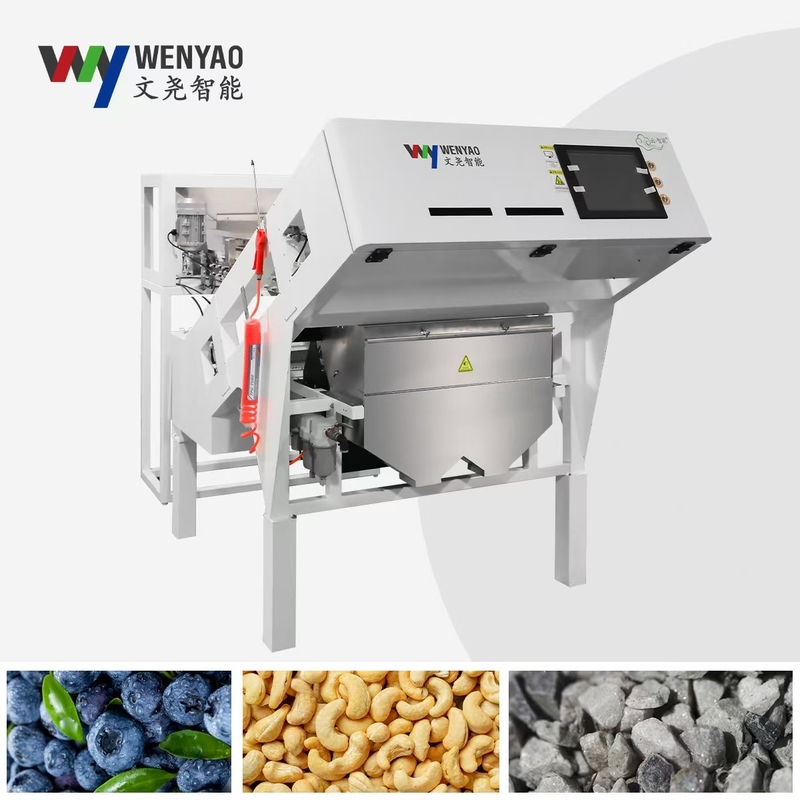

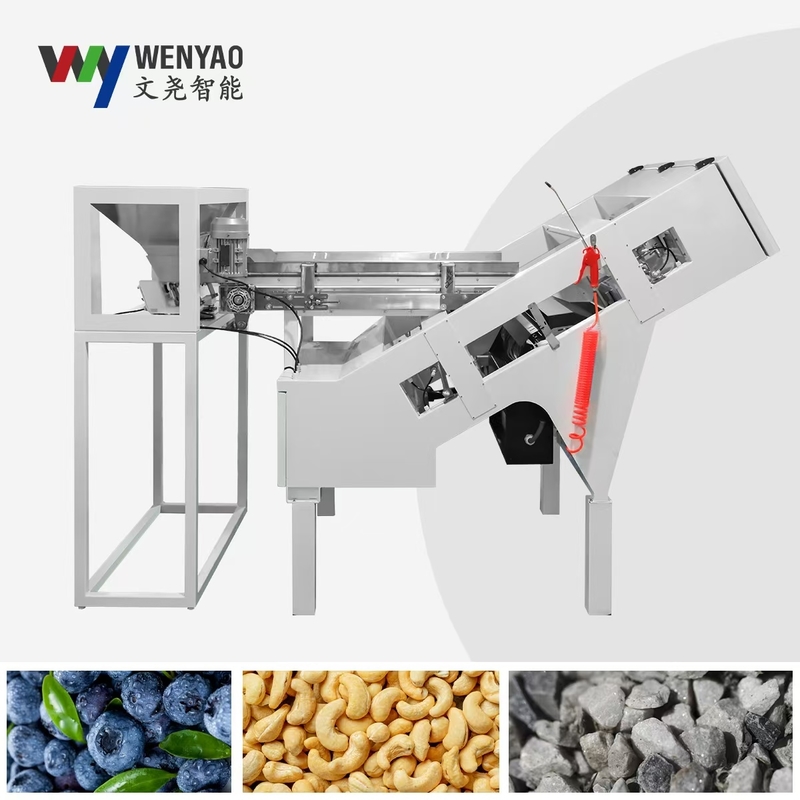

Examples of color sorting:
From Customer's Site:
1,Advanced image acquisition system
Wenyao color sorter machine use the high resolution monochromatic camera or RGB camera(5000+ pixels) with high quality industrial lens to achieve clear and accurate image acquisition.The camera could capture the micro defects of material instantly.
2,Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.
3,Unique chutes processing technology
The special anodizing and hardening technology can greatly improve the channel smoothness and ware resistance to guarantee high production.
4,High quality solenoid valve(ejector)
Wenyao color sorters are equipped with high quality solenoid valve.The valve has longer lifespan,high frequency and low air consumption.The working frequency is 1000 times per second,which guarantees the accurate and perfect ejecting.For the different sizes and characteristics of material particle, wenyao optical sorters use the solenoid valve of different sizes.

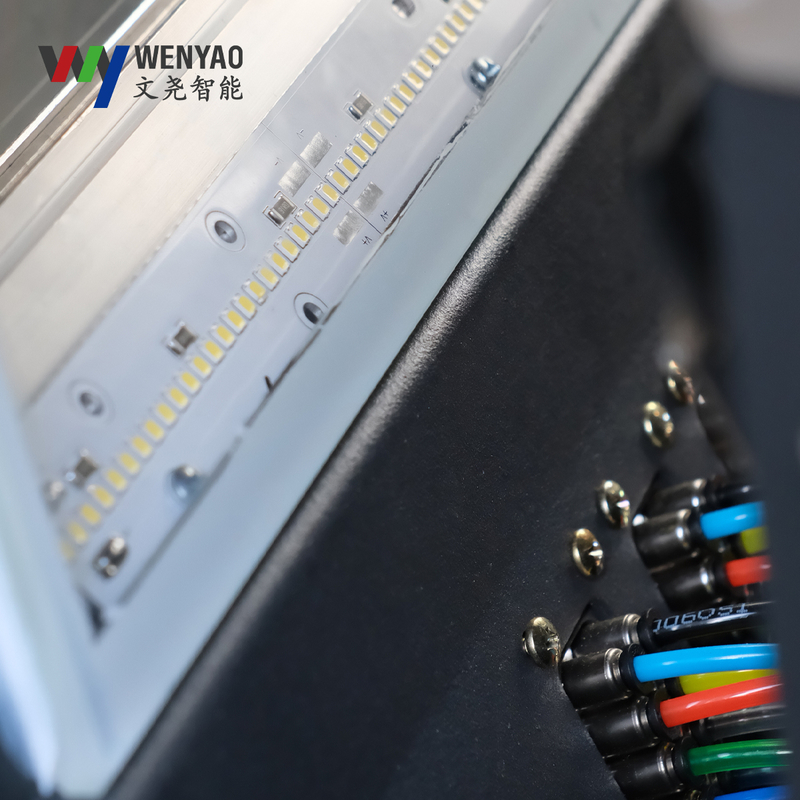

5,High efficiency and reliable light source
Advanced LED lighting technology with advantages of super high intensity,long lifetime&perfect performance.
6,Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.
Certificate :
Packing And Delivery :
Contact US:
Why Choose Wenyao Color Sorter?
1. Over 20 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 100 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
