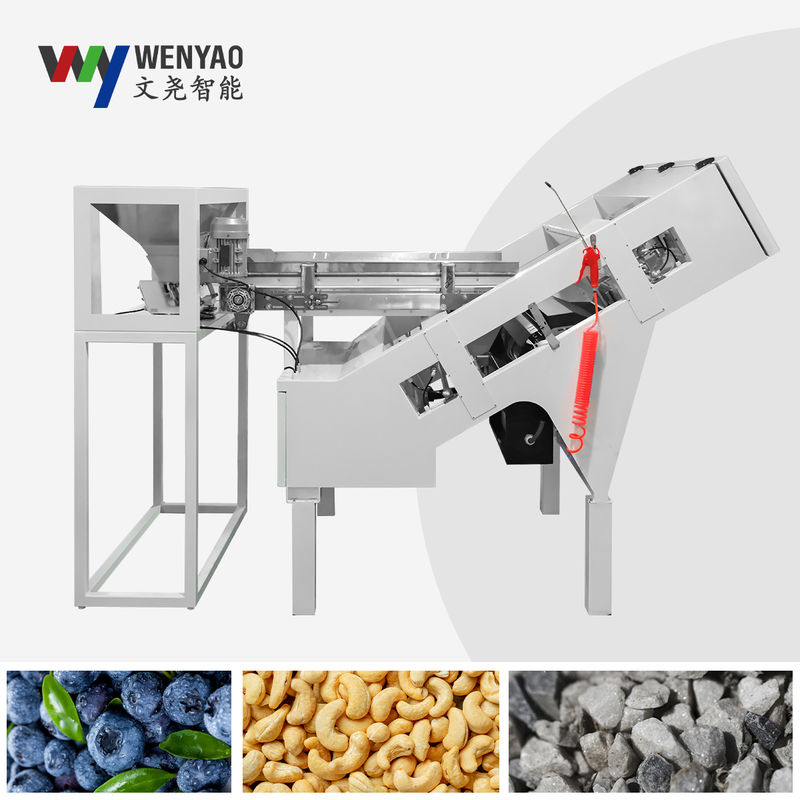

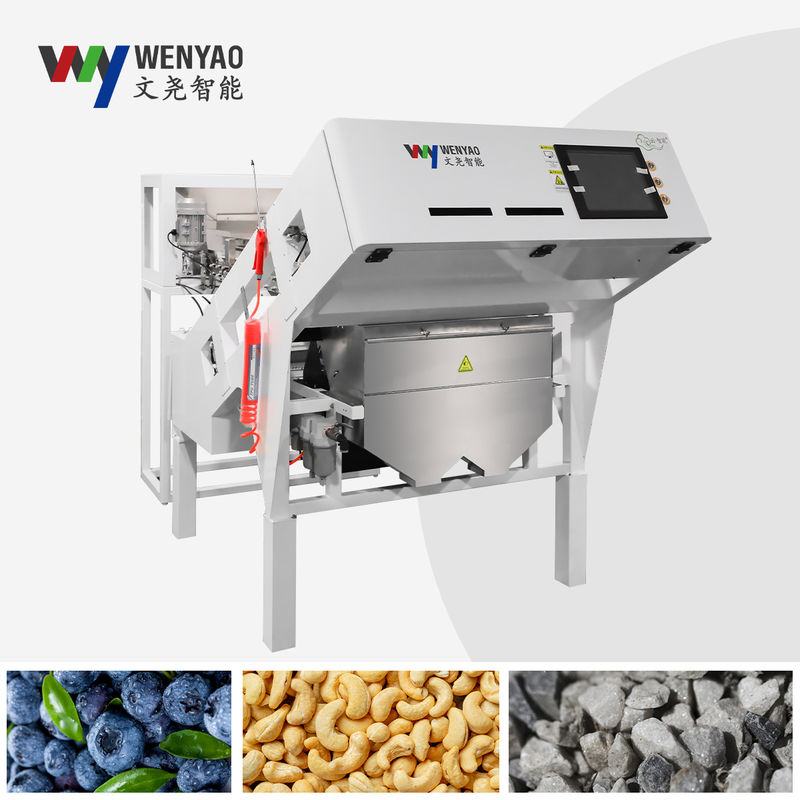

Intelligent Automatic Belt Pistachio/Pine Nut/Raisin/Jujube/Nut Color Sorter
Wenyao Color Sorter Working Principle :
Input product is loaded into the in-feed hopper , it moves along the vibrating plate , until it flows on to a sloping chute, where it is individually checked at 360° and sorted by RGB Full color cameras .
Depending on the signals received by the optical device, the sorter's software controls the pneumatic device, which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper.
Technical Parameters:
| MODEL | mini WYB2 |
| Chutes/Channels | 2/128 |
| Throughput(t/h) | 300-400gk/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1.2kw |
| Power Voltage | 180-240V/50Hz |

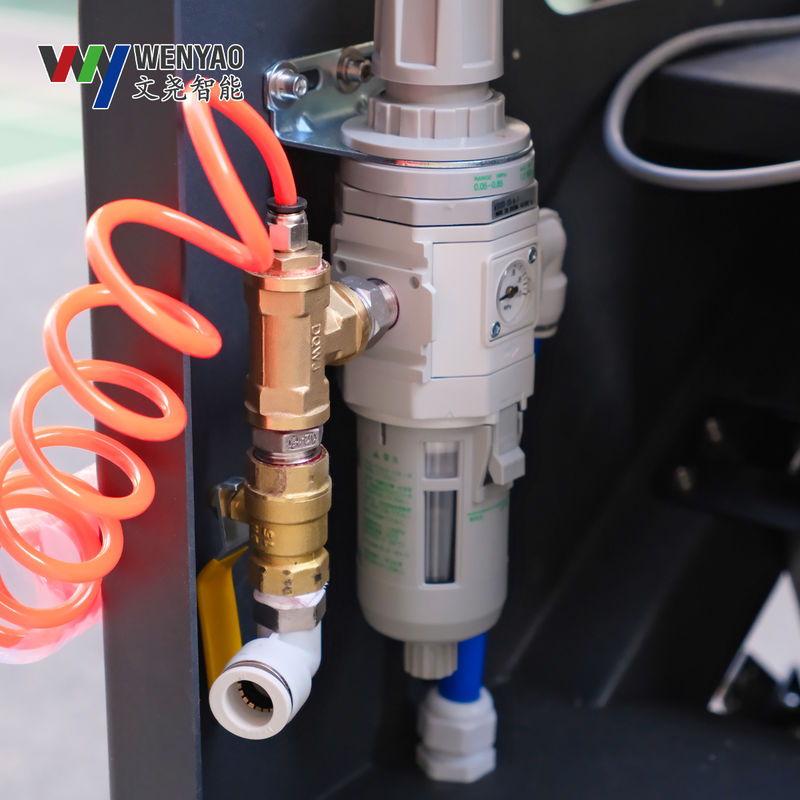

| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 0.2-0.6M3/Min |
| Weight | 450kg |
| Diamension(L*W*H) | 2500*1200*1620mm |
Why choosing wenyao?
※ Intelligent CCD image acquisition system
color sorter machine use the high resolution monochromatic camera or RGB camera(5000+ pixels) with high quality industrial lens to achieve clear and accurate image acquisition. The camera could capture the micro defects of material instantly
※ Unique image processing Each group can be synchronized for the simultaneous separation of different models. This allows for a variety of color sorting at same time. This method both improves productivity and significantly increase the color accuracy.
※ Advanced tailor-made slide and track construction
The anti-oxygen chute device adopted special processing technology, make material flow more smooth, uniformly. It's also very strong and durable.Unique※ lighting structure system

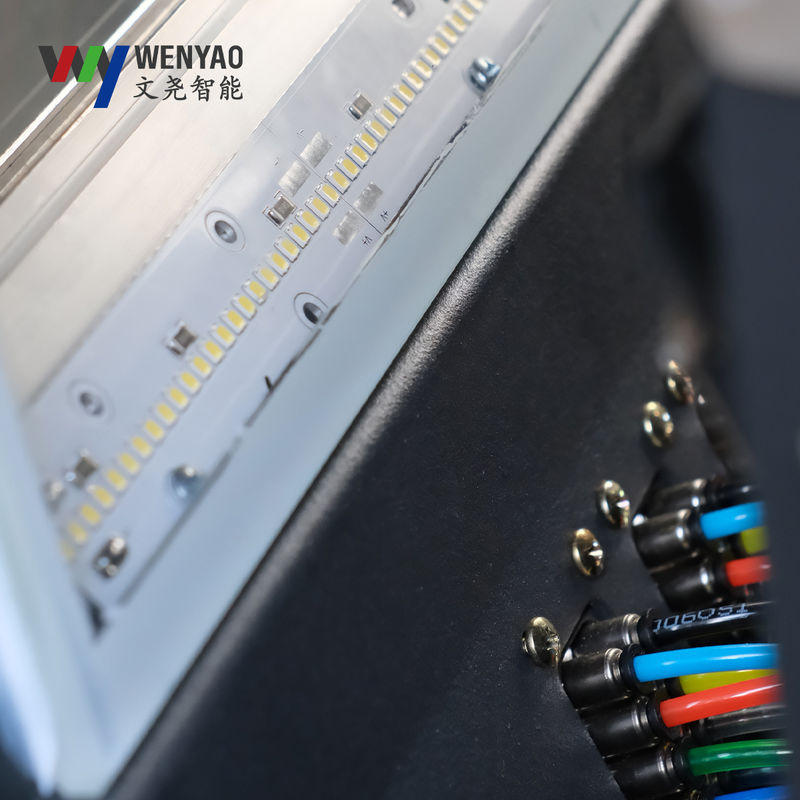

Advanced LED light with thermal dissipation, wide color gamut, excellent uniformity, long
※ service life and low power consumption.
High quality solenoid valve(ejector)The valve has longer lifespan, high frequency and low air consumption. For the different sizes and characteristics of material particle, sorters use the solenoid valve of different sizes.
※ Full range of automatic detection function The color sorter has built in self-diagnostic capability verifying key components e.g.spray valve, pressure plate, camera, control panel, and background during normal operation .Identified faults can be easily rest by the user.
※ Perfect after-sales service and warranty service
We have a professional after-sales team and engineers. And we supply lifelong software upgrade services for our customers.
Product application:
Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Walnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Vegetable and fruits:
Such as: Dried Garlic ,Onion, Olive,Coffee Cherry,Jujube ,Dried fish and shrimp
What you can choose from us?
---Advanced equipment, good quality
---Professional skills, all-related services
---High quality and efficiency technology
---Complete production line, quick delivery
---The biggest grain and oil machine manufacturer and exporter in China
---Exporting to more than 100 countries and regions
Our service:
Pre-sales
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After-Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
Service of:
--1)We can promise machine all details with high quality.
--2)The rice mill machine can be painted in different color according to customers’ favor.
--3)Any time customers has problem for using the machine can contact us, and also for large plant, we can send install video or technical workers go to guide how to install and how to operate.
--4)Guaranty time for two years.
Sorting effects :
Our Custom's site:
Welcome to Coutact us:
