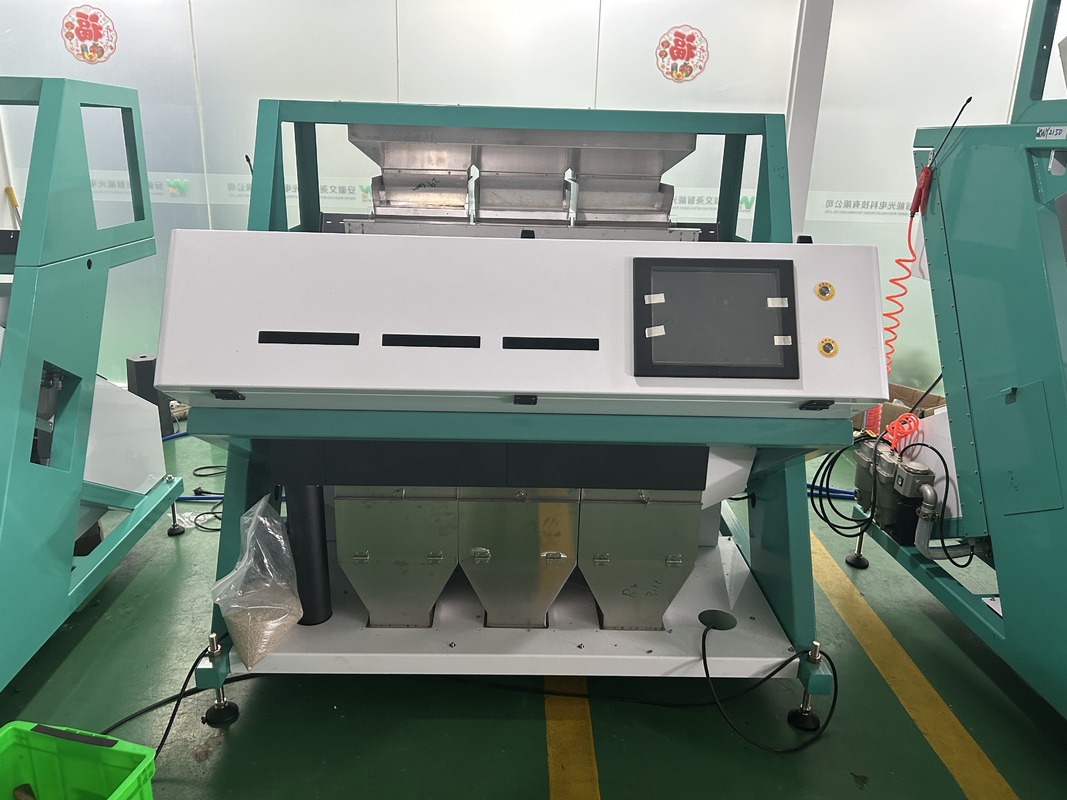

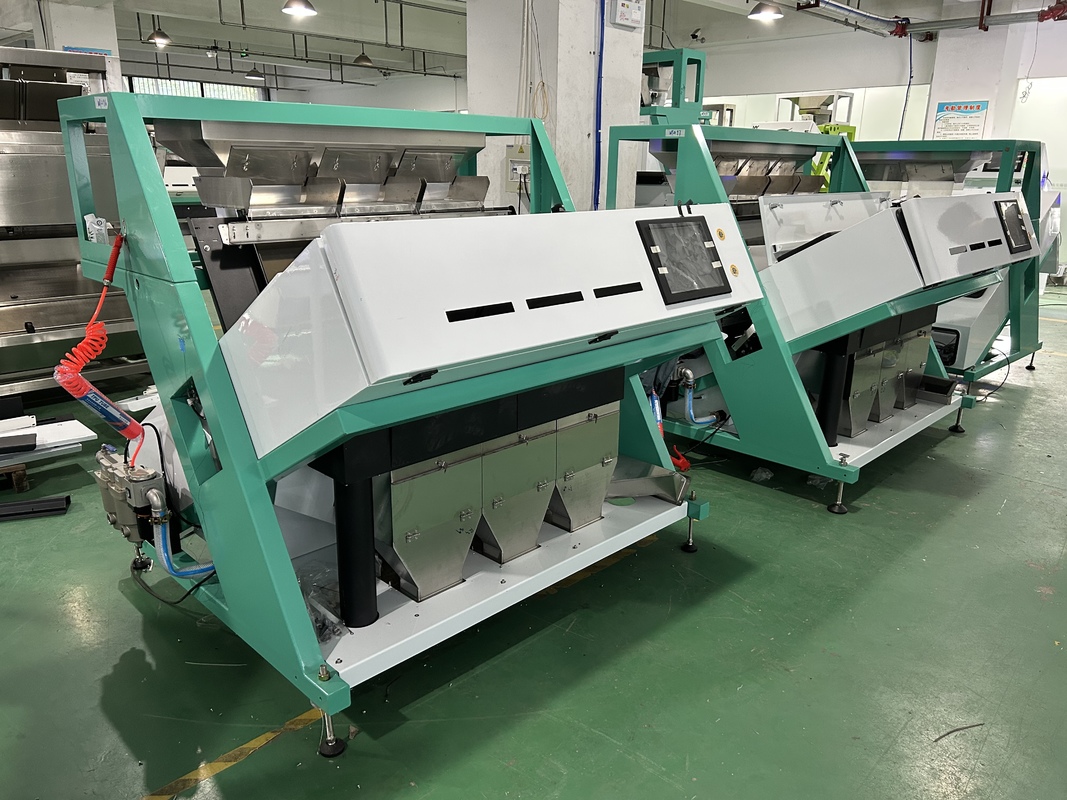

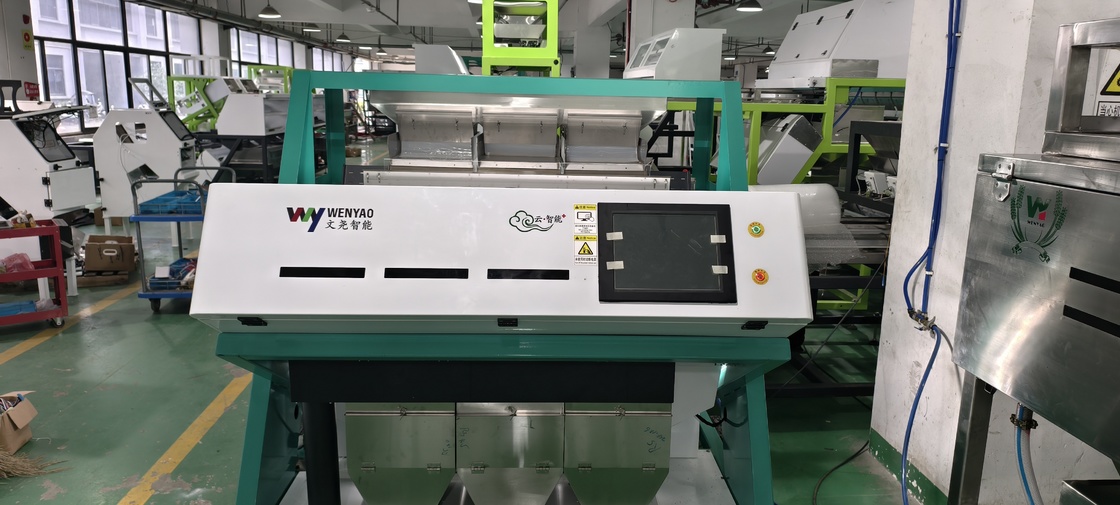

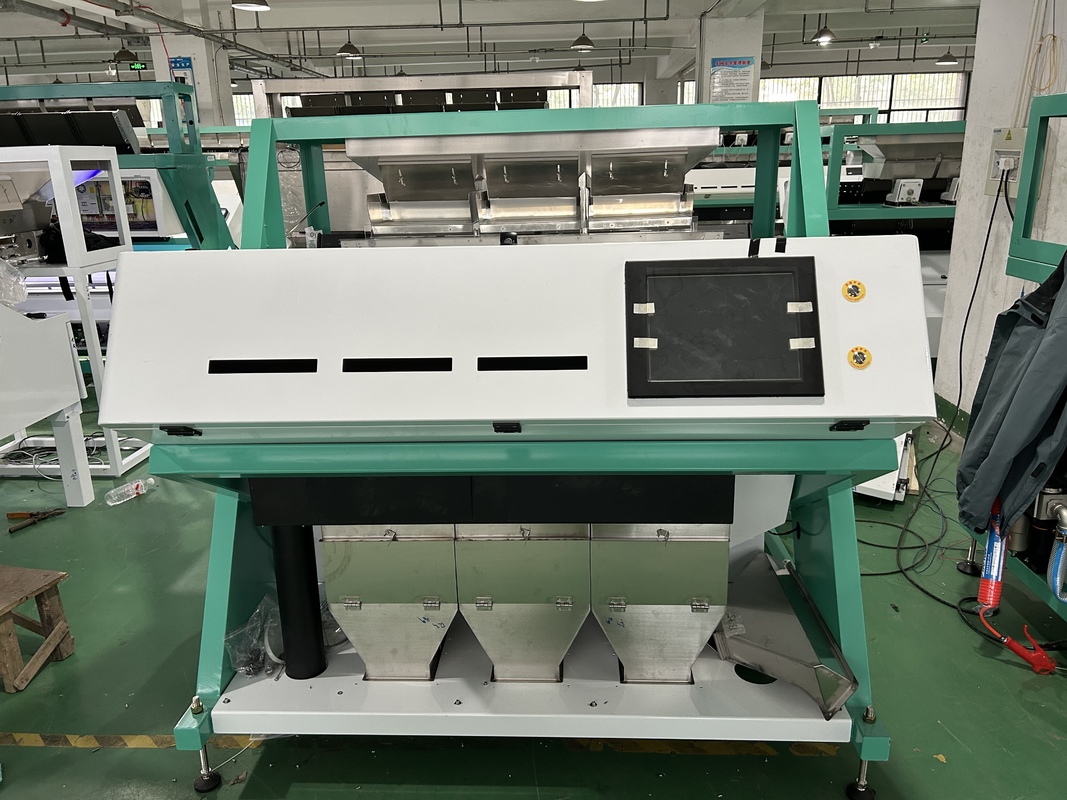

Quinoa Color Sorter Machine From WENYAO With 99.99% Sorting Accuracy

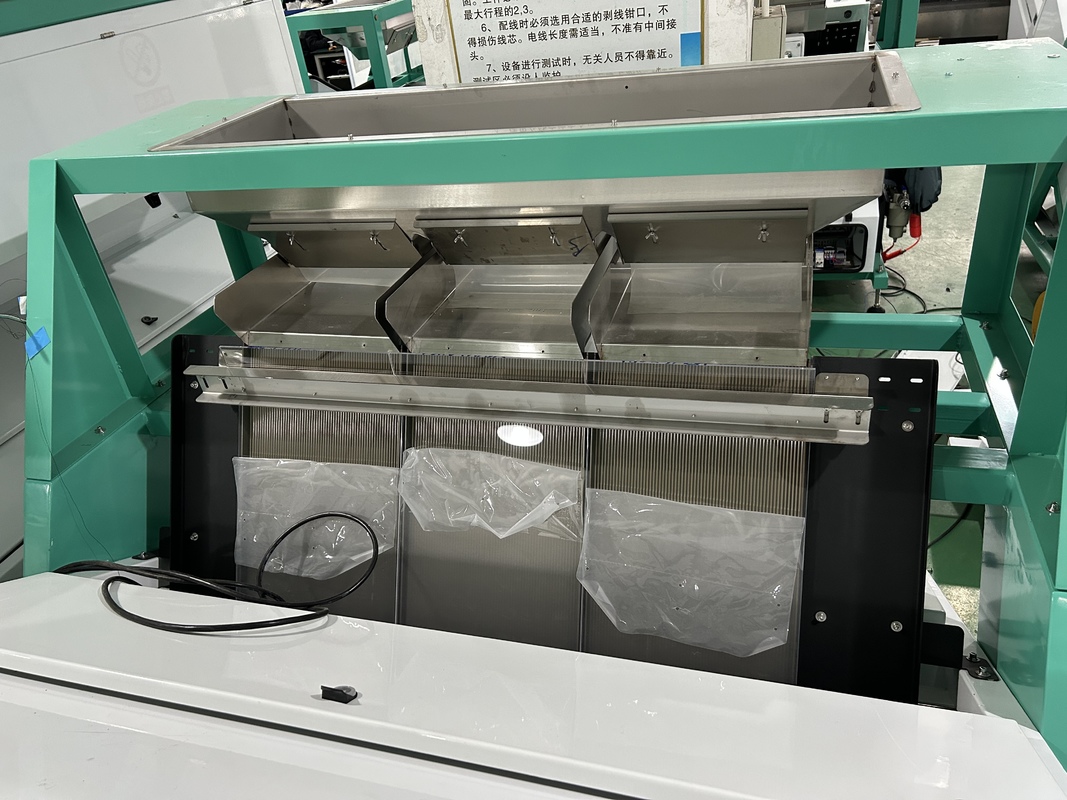

Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory
feeder and sliding along material chute into the zone of observation in sorting chamber through
sensors and background plate. Under the effect of lamps source, CCD sensor receives compound
light from materials being sorted. According to the light intensity and color changes, make the system
produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject
chamber and good materials continue to fall into the finished accept chamber.
Technical Parameters:
| MODEL | WYCS3-192 |
| Chutes/Channels | 3/192 |
| Throughput(kg/h) | 500kg-750kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1.6kw |
| Power Voltage | 180-240V/50-60Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <3.8M3/Min |
| Weight | 600kg |
| Diamension(L*W*H) | 1620*1535*1832mm |
Features

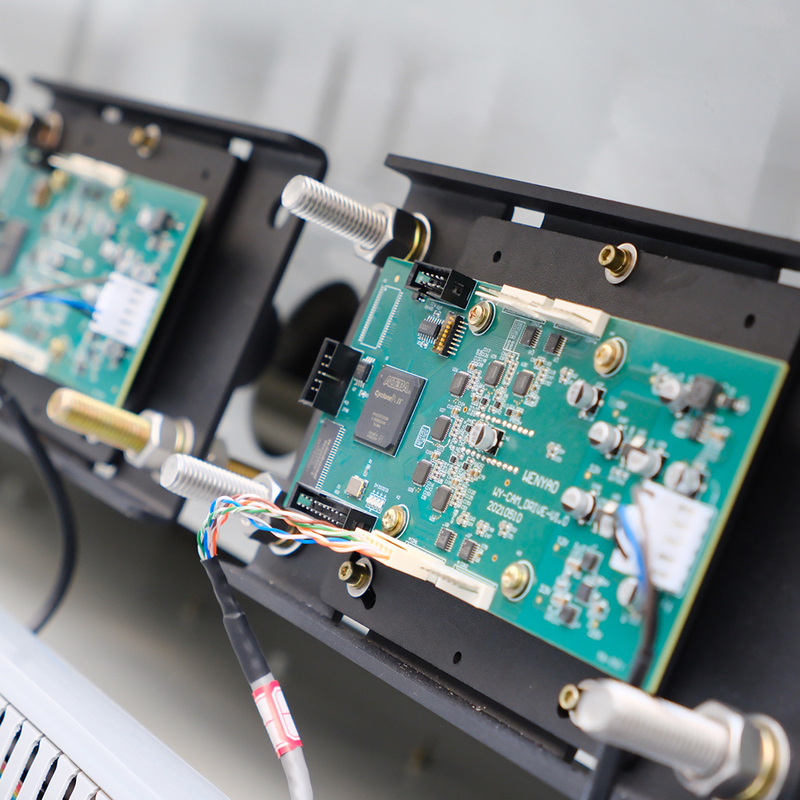

RGB HD camera :RGB full color tri-chromatic ccD image acauisition systemHigh camera resolution
5400 pixel identifying tiny defects up to 0.01 mm
LED Lamp :Unique intelligent LED with cold unshaded light source and super long life span.
Remote control :Users can remotely control color sorters online.
Deep Learning Algorithm:Adapt to different complex scenarios and meet the constantly changing
sorting needs of customers
Intelligent dust suction system:Accurate dust collecting position design to secure sorting
room spotlessly clean keeping high identification.
Color & shape sorting: Large/small sorting,Long/round sorting,Sizeedgetexture sorting.
Examples of color sorting:
Our service:
--1)We can promise machine all details with high quality.
--2)The rice mill machine can be painted in different color according to customers’ favor.
--3)Any time customers has problem for using the machine can contact us, and also for large plant,
we can send install video or technical workers go to guide how to install and how to operate.
--4)Guaranty time for two years.
What you can choose from wenyao?
---Over 15 years experiences focus on color sorter machine,the biggest factory in China.
---Two years warranty for the whole machine and accessories.
---Advanced equipment, high quality.
---Professional skills, all-related services .
---High quality and efficiency technology .
---Complete production line, quick delivery .
---Exporting to more than 100 countries and regions
---Two years warranty for the whole machine and accessories.
Why choose US?
1. Over 15years experiences focus on color sorter. We have the strength give better service and price to you.
2. Overseas Service Station: We have service station, cooperate reseller more than 40 countries. We can meet your requirements on testing, installation and after sales service.
3. OEM/ODM is Supported: We have a strong R&G team. We can research and development suitable color sorter for you.
4. Quality Process Assurance: We pass CE, RoHS and ISO quality management system, each process of production are under strictly standard.
5. Shipping Guarantee: We have professional packaging operations team, independent export qualification to ensure product safety and stability to reach customers in the hands.
6. After-sales Service Guarantee: We provide one year warranty and lifetime maintenance. Free home repair during the warranty period (except for human factors or irresistible natural phenomena caused by failure or damage)
7. Sales team: Our professional sales team is fluent in English, Russian, Chinese , Spanish and Japanese. Can communicate better with customers.
