Wenyao CCD Optical Sorting Machines Quinoa Color Sorter Machine for Grains Beans Coffee Rice Nuts Peanuts
| Details as following | |
| MODEL | WYCS10-640 |
| Chutes(channels) | 10(640) |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥30:1 |
| Output(T/h) | 4-6 |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 6.5 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 2600-5000 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 3630*1545*1860 |
| Weight(kgs) | 1800 |
| Package | Plywood case |
| Package Size mm | 3764*1554*1871 |
Color sorter work principle:
Color sorters are integral to many businesses, particularly in the agricultural and food processing industry. For example, a color sorter can display seed images and swiftly sort through grains and harvested products with rapid efficiency, including:
.INTELLIGENT OPERATION SYSTEM
Overall Large Screen HD Operation control panel, 1080P Super high resolution,system more stable, more friendly Human-Machine-Interface panel, which gives high sensitivity instant fast repones in the industrial environment.
NEWLY SPECIAL SUPER WIDTH CHUTE DESIGN
Special technology chutes, applicable for universal materials,make the transfer more steady, more capacity.
MECHNICAL RECONSTRUCTION
Reconstrution of the mechnical frame, the main part with special material,balancing whole frame bearing, ensure the machine integrity. Working with the updated mechanism, it strength the base of the ultra-sorting.
SELF-DEVELOPED SPRAY VALVE
Self-developed spray valve, Self-developed high-performance spray valve, super high rapid response to the Algorithm results. It can continuously working 12billion+ times, extremely long life, with low air consumption,master the core technology.
ILLIMITABLE SORTING POSSIBILITIES, START BY “ONE BUTTON” PRESSURING
Hundred of sorting profiles can be saved in machine machine, for the variety products for sorting, subdivide the quality of agric and sideline products illimitable sorting possibilities,“one button”start, “one button”profiles exchange.
SHADOWLESS COLD LIGHT SOURCE,AUTOMATICA ADJUSTABLE
Extremely long life, low energy consumption intellligent shadowless cold light source, orthogonal spectrum technology, make the image more visiable, more accuracy detection; the output luminance of light source are automatically adjustable, it make the lights more stable with high quality. It is fully appliable for the camera to see and detect.
Examples of color sorting:
Feature :
Package :
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
Customer's Site :
After Sales Services:
· With presence in various countries, Spectrum Industries is strongly committed to being close to the customer.
· Through cooperation with loyal and carefully evaluated and trained local employees and partners, Spectrum managed to provide fast, competent and rooted services in the context of customers.
· Application centre in Mangalore production base offer demo machines for tests and comparison.
· A strong central technical team is supporting local channels with training, advice and technical support.
· Under normal working circumstances, color sorter machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure from the date of purchase.
· Service line is available for emergency support.
· wenyao products will be serviced and supported wherever customers are located.

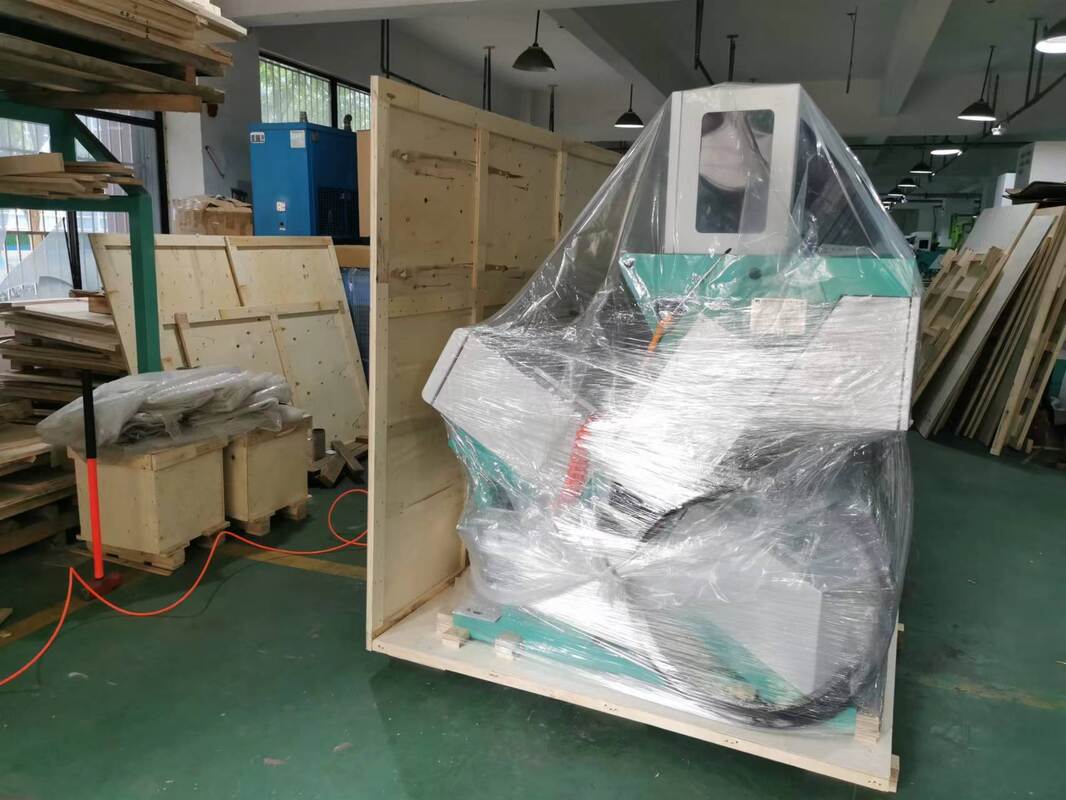

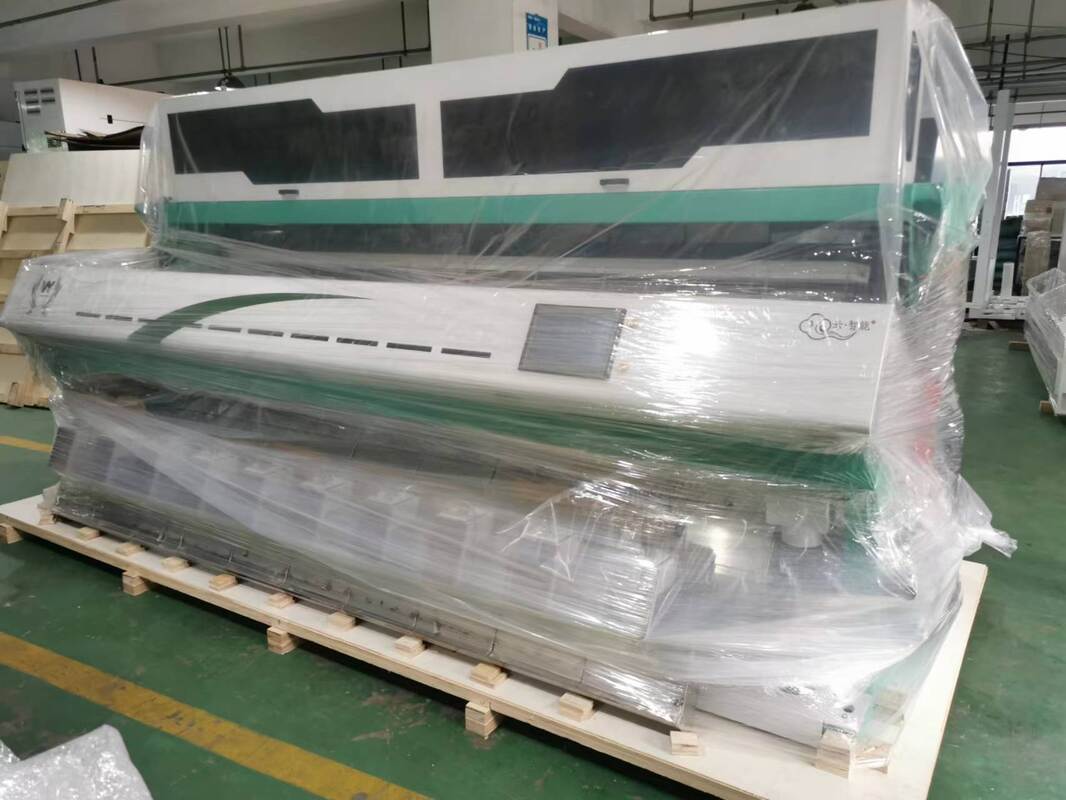

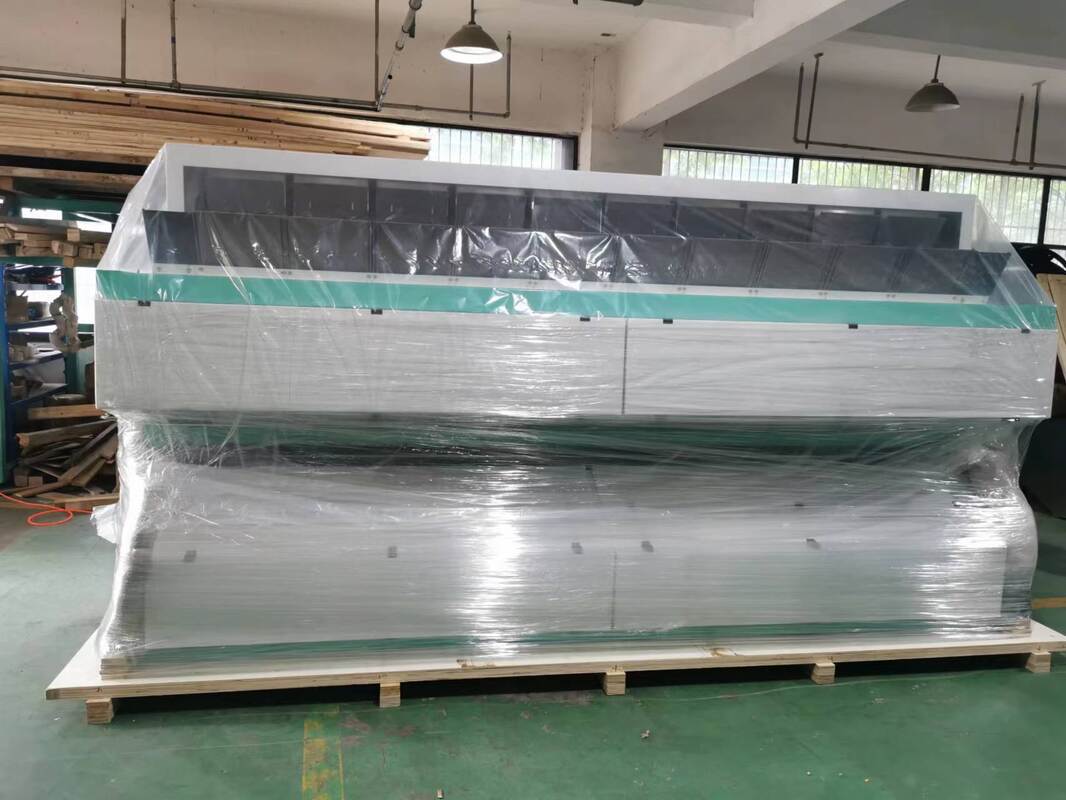

Packing & Shipping:
· Machines are carefully packaged to endure transportation under harsh conditions.
· Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.
Why choosing Wenyao
1. Over 20 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 100 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
