원래 장소:
Hefei China
브랜드 이름:
WENYAO
인증:
ISO9001&CE
모델 번호:
WYCS7-448
연락주세요

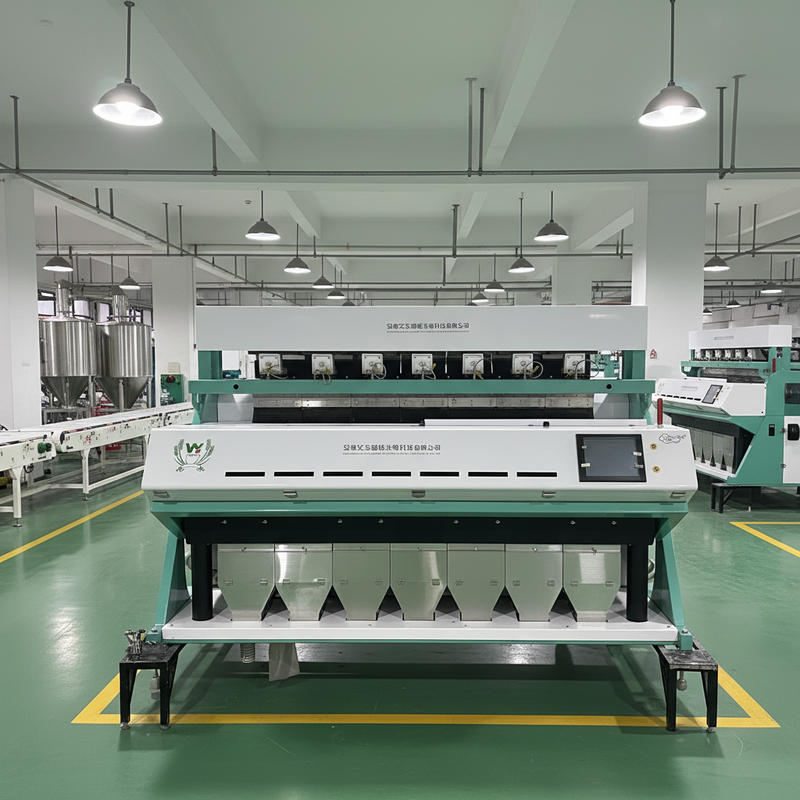

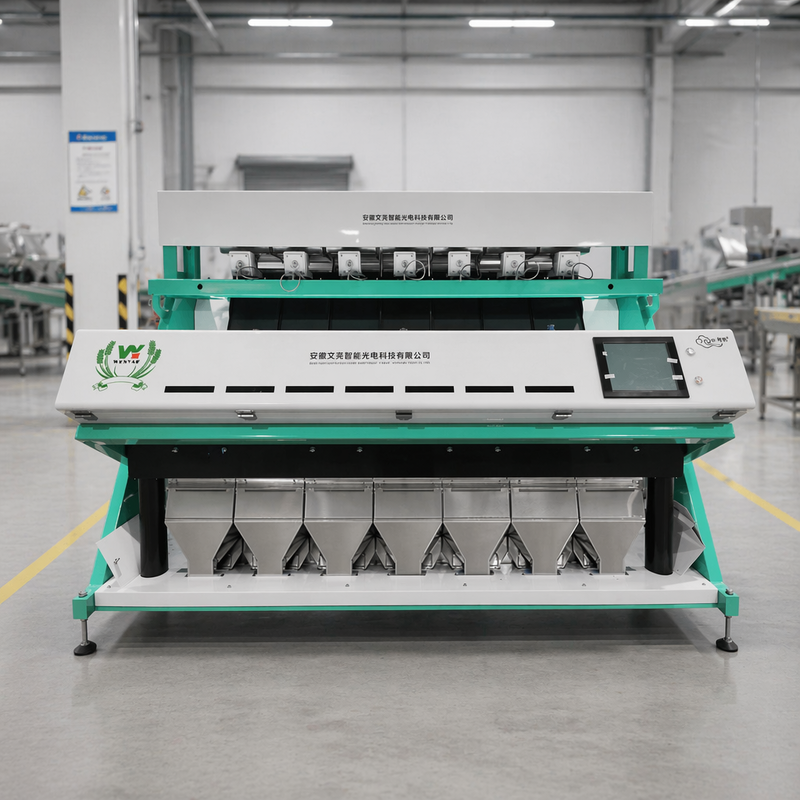

1. WENYAO Colour Sorter Machine Working Pricinple
Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber
2. Technical Parameters:
| MODEL | WYCS7-448 |
| Chutes(channels) | 7(448) |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥30:1 |
| Output(T/h) | ≥2 |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 3.7 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 1800-3800 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 2874*1560*1860 |
| Weight(kgs) | 1350 |
| Package | Plywood case |
| Package Size mm | 3280*1680*2060 |
Nut color sorter is an intelligent optical sorting machine specially designed for all kinds of nuts. It identifies discolored, moldy, shriveled, damaged nuts and foreign impurities through high-speed cameras and intelligent AI algorithms, automatically separating qualified high-quality nuts from defective ones to improve nut purity and commercial value.
4. Examples of Color Sorting Examples
The nut color sorter adopts high-precision CCD optical imaging system and deep learning intelligent identification technology. It is widely applied in the processing of almond, walnut, cashew, pistachio, hazelnut, macadamia, peanut, pine nut and other nut kernels.
During operation, materials evenly slide through the sorting chute. High-definition cameras capture real-time color, texture and surface defect information of each nut particle. The built-in industrial control system quickly compares the captured data with standard color templates, instantly sends ejection signals to high-speed solenoid valves. The valves blow out bad nuts, moldy particles, black spots, worm-eaten kernels, stones, plastic fragments and other foreign matters via precise air jets, while intact good nuts fall into the finished product bin.
Equipped with dust removal and anti-jam structure, the machine adapts to oily, high-fiber nut raw materials. It features low air consumption, high sorting accuracy, low carry-over rate and easy operation. Touch screen human-machine interface supports one-click parameter adjustment for different nuts, greatly reducing labor cost and improving production efficiency for nut processing factories.
How to get the correct size and suitable price of wenyao color sorter machine?
Step 1. Which kinds of the material do you want to sort ?
Step 2. How much input capacity for the raw materials per hour?
Step 3. In order to know the impurity rate of the raw materials which are needed to be sorted, please send us 3 pictures as following:
1. Raw material picture(feeding in the machine materials)
2. Accepted material picture(you want to save the good materials)
3. Rejected material picture(you want to sort out the bad materials)
5. Our Service:
A: For software:We have installed WIFI remote control system on machine,Once machine arrived in your local we will connect with machine touch screen provide technical assistance from Chinese factory.
B:For hardware:We will supply you the spare parts ship together with machine,In case you face hardware problems,we will guide you how to repair by live videos.
6.Packing and Delivery:

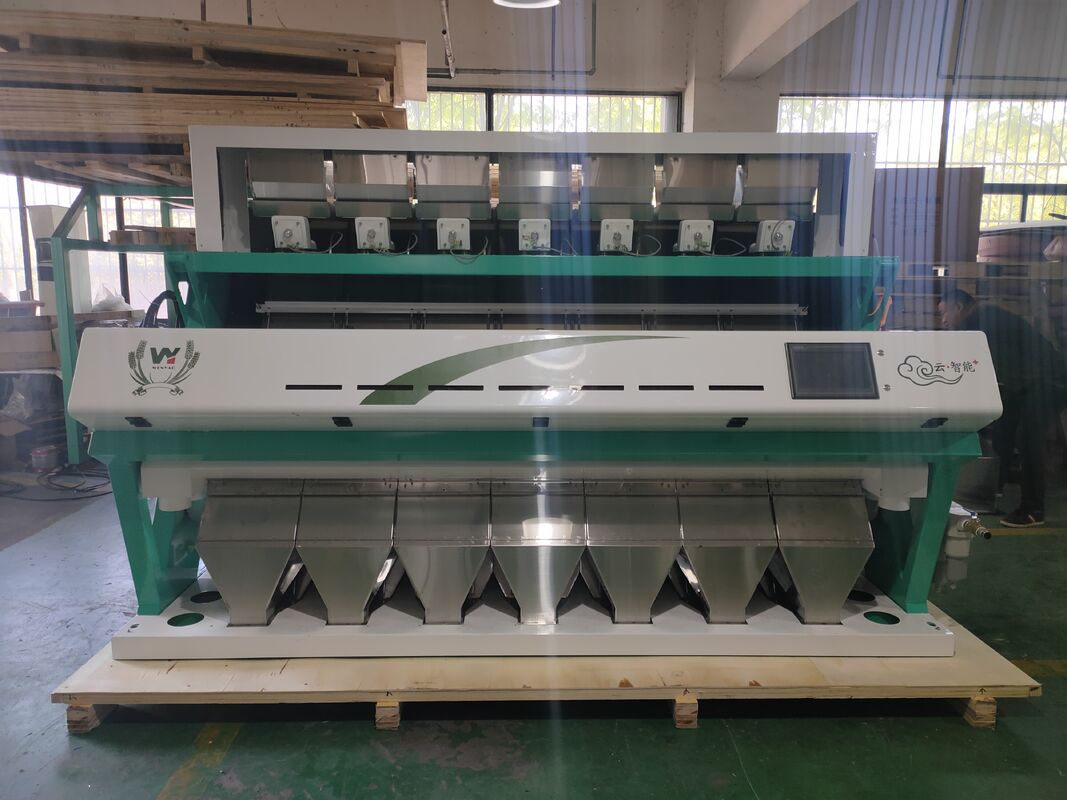

Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 15 - 20 days after received deposit.
Package :
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
2. How long about the guarantee period?two year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required.
5. How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local transportation and security when the Engineer arrived.
Why Choose Wenyao Color Sorter?
1. Over 17 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, cooperate reseller in more than 100 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in hands.
The full coverage gradient dust removal system can be equipped with an optional suction and dust removal device, which has a more reasonable structure, stronger suction force, and cleaner dust removal.
Equipped with SOC intelligent chips and integrating AI deep learning algorithms, a sorting platform with higher integration, faster computation, and stronger processing capabilities is constructed.
The algorithm fits the digital model of defective materials, marks the center point of the material, and achieves small gas volume and more accurate center removal.
Adaptive injection system, no exhaust gas, no air leakage, fast response speed, low power consumption, and long service life.
Integrating multidimensional data such as light, quality, color, and shape, achieving quantum level recognition of rice raw materials and restoring their true colors.
Adopting low-temperature spotlight LED light source, intelligent dimming, 16 million color mixing options, energy-saving and more durable.
